INTRODUCTION

Thanks to the scalability of GV-Series, you can easily integrate surveillance system and IP cameras, and load analog and digital video data into the same interface to become a comprehensive hybrid solution.The GV-Series Surveillance System V8.3 is able to process video signals from IP cameras over TCP/IP network. Combining the best of both the analog and digital worlds, the GV-Hybrid DVR is a versatile video management platform. It answers needs for a transition from a legacy analog infrastructure towards a pure IP surveillance environment.

In the version 8.3, the GV-Hybrid DVR comes with a rich panel of features to streamline surveillance operations and enhance management capabilities. Remote surveillance is implemented via 3GPP, IE browser and GeoVision GV-MultiView. For the purpose of central monitoring, the GV-Hybrid DVR offers an extensible solution for multi-site surveillance and control to manage numerous cameras from subscribers.
Supported IP Camera List


Built upon comprehensive and easy-to-integrate hardware and supporting technologies, the GV-Surveillance and Video Management Platform is the core system platform that provides performance-optimized video monitoring and various advanced video analytics/control features to support many of enterprise’s management functions. It is a scalable, extensible platform that can be customized and seamlessly integrated with other security system applications, such as:

  1. POS/ ATM/ EAS for loss prevention
  2. Access Control for building automation
  3. License Plate Recognition system for law enforcement, entrance control and revenue collection
  4. Megapixel IP devices for critical area and mobile object monitoring
  5. Central Monitoring stations for high profile security areas in commercial, industrial and residential markets

In addition the remote management WebCam and versatile storage system framework offer high scalability and extensibility for future integration with other functions or systems at remote sites.
VERSION 8.3 KEY FEATURES
  • Support for 32 channels in GV-System and CMS applications
  • Support for two GV Video Capture Cards in GV-System
  • New features to Main System:
    • Digital Matrix
    • Automatic adjustment for DST (Daylight Saving Time)
    • Lost signal alarm
    • Talkback support when IP cameras provide 2-way audio
    • Windows-based direct POS integration (POS Text Sender)
    • Crowd Detection (**)
    • Advanced Scene Change Detection (**)
    • Advanced Unattended Object Detection (**)
    • Advanced Missing Object Detection (**)
    • Single Camera Tracking
    • Turbo Mode for GV-Combo A Cards (GV-1480A, 1240A, 1120A) to record at high speed
    • Iris button added to the PTZ control panel
    • Colorful Mode to enhance video color
    • Support for new 3rd-party IP cameras:
      Arecont AV-3130, AV-8360
      Axis 209FD, 209FD-R, 209MFD, 209MFD-R, 211M, 211W, 215, 216MFD, 216MFD-V, 241Q, 241S, P3301, Q7401
      Cannon VB-C50i, VB-C300
      IQEye IQEye 703, IQEye 705, IQEye 752, IQEye 753, IQEye 755
      JVC VN-V25U, VN-V26U, VN-V686U
      Mobotix M12D Web, M12D IT-DNight, M12D Sec
      Panasonic WV-NS202A, WV-NW484, WV-NW964
      Pelco IP110, IP3701
      SONY SNC-CM120, SNC-CS20, SNC-DM110, SNC-DM160, SNC-DS10, SNC-DS60, SNC-RX530N, SNC-RX530P, SNC-RX570N, SNC-RX570P
    • Support for new PTZ cameras:
      COP 15-CD53W (Pelco D), Elmo PTC-200C, Elmo PTC-400C, Elmo PTC-1000, Eyeview T-Power (T2-SA27), JVC TK-C686E, Lilin PIH-820, Nang Wang WVD 2300PNT (firmware version 4.1), StorVision and 360 Vision ViD-18COP04 (Pelco P)
    Note: The feature with (**) mark needs to work with an AVP dongle which you need to purchase additionally.
  • New features to ViewLog
    • Support for Daylight Saving Time (DST)
    • Playback of GPS tracks from GV-Compact DVR and GV-Video Server
    • Colorful Mode to enhance video color for playback
  • New features to WebCam:
    • Multicast
    • Audio Broadcast
    • POS/Wiegand Live View option added to Single View
    • New GUI for Remote Playback (RPB)
    • Support for BlackBerry phones
  • New features to SMS Server:
    • Unlimited log retention time
    • Support for new alert events, including Crowd Detection, Advanced Scene Change Detection, Advanced Unattended Detection and Advanced Missing Object Detection
    • Support for Wavecom GPRS Modem
  • New features to Center V2:
    • Remote control of I/O devices from GV IP devices
    • Unlimited log retention time
    • Colorful Mode to enhance video color
    • Assigning a DVR client to another Center V2
  • New features to VSM:
    • Remote control of I/O devices from GV IP devices
    • Unlimited log retention time
    • Automatic insertion of ID and Name to SMS messages
    • Support for new alert events, including Crowd Detection, Advanced Scene Change Detection, Advanced Unattended Detection and Advanced Missing Object Detection
  • New features to Dispatch Server:
    • Unlimited log retention time
    • Colorful Mode to enhance video color
  • New features to Control Center:
    • Support for new event settings in VMD, including Crowd Detection, Advanced Scene Change Detection, Advanced Unattended Detection and Advanced Missing Object Detection
    • Colorful Mode to enhance video color
    • GV-Keyboard support in Matrix
    • QView in Matrix for channel display on another monitor
    • Remote control of I/O devices from GV IP devices
    • Pop-up live view upon input triggers in I/O Central Panel
  • New applications:
    • GV-GIS (Geographic Information System)
    • Multicast
    • Audio Broadcast
  • New devices:
    • GV-I/O Box 4 Ports
    • GV-I/O Box 8 Ports
    • GV-I/O Box 16 Ports

FULL FEATURE LIST
Monitoring
  • Support for 32 channels in GV-System and CMS applications
  • Support for two GV Video Capture Cards in GV-System (*)
  • Digital Matrix, support maximum 8 monitors display

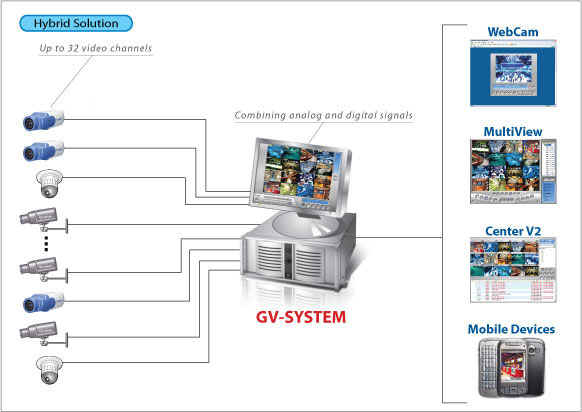

  • Hybrid Solution integrating analog videos with digital videos from GV-IP video products and third-party IP cameras (*)
  • Codecs: Geo H264, Geo MPEG4 ASP, Geo H264 V2 (*)
  • Multithreading Encoding (*)
  • Higher Screen Resolutions (1920 x 1200, 1680 x 1050, 1600 x 1200, 1280 x 800, 1440 x 900 and 1920 x 1080)
  • Noise Tolerance for Motion Detection
  • Noise Detection to Reduce File Size (*)
  • Noise Filter to Filter Out Video and Audio Noise (*)
  • Report Generator
  • Support for Cardholder data from GV-Video Server
  • Touch Screen Support
  • Full screen view
  • Dual display operation for live monitoring and ViewLog playback on two monitors
  • Screen pop-ups on motion or alarm activation
  • Advanced Motion Detection
  • Digital watermark
  • Video lost detection
  • On screen video loss message
  • Video de-interlace filter
  • E-map
  • Windows lockup
  • Image size indicator
  • Synchronized video an audio
  • Backlight compensation
  • Video auto gain controller (*)
  • Video scaling filter
  • AVI repair utility
  • System log
  • Support 1,000 accounts for logins and passwords
  • Multi level passwords protection
  • Use Microsoft Remote Desktop to control another GV-System
  • Twin DVR
  • Embedded I/O devices control
  • Embedded PTZ control panel
  • Support dynamic IP address
  • Password Expiration Management
  • System Idle Protection
  • Spot Monitor Controller
  • POS Live Viewer
  • Photo-ID Integration (GV-WT)
  • Hard Disk Calculator  (*)
  • Authentication Server
  • Colorful Mode to enhance video color
Intelligent Recording & Playback
  • Choice of recording at 30, 60, 120, 240, 480 and 960 fps (*)
  • Recording trigger by round-the-clock, motion detection, alarm and schedule
  • Adjustable recording quality and frame rate for each camera
  • Pre-motion and post-motion recording
  • Supports Windows XP / Server 2003 burning software
  • Pre-Recording Using HDD (*)
  • Advanced Round-The-Clock Recording (*)
  • Instant Playback
  • Time Merge From Different Clips
  • Splitting Files for Backup onto Multiple Discs
  • Extracting Frames from a Video Clip During Playback
  • Support for Daylight Saving Time (DST)
  • Playback of GPS tracks from GV-Compact DVR and GV-Video Server
Audio
  • 32 channels of live audio streaming and recording
Video Analytics
  • Enhanced Object Counting
  • People Counting
  • Intrusion Alarm
  • Face Detection
  • Privacy Mask
  • Unattended and Missing Object Detection
  • Scene Change Detection
  • Advanced Scene Change Detection(**)
  • Advanced Unattended Object Detection(**)
  • Advanced Missing Object Detection (**)
  • Panorama View(**)
  • Video Stabilization(**)
  • Defog Function(**)
  • Crowd Detection(**)
  • Object tracking and zooming by PTZ domes (*)
  • Single PTZ Tracking (*)
    Note: The feature with (**) mark needs to work with an AVP dongle which you need to purchase additionally.
Smart Search & Ease Playback
  • Timeline Search
  • Face Detection for Object Index
  • Object search
  • Index search
  • Object Index
  • Thumbnail browse for ease of search for specific frames within video footage
  • Export a video footage within a specified time range
  • Synchronized audio and video for both live and playback modes
  • Continues playback of set frames A to B
  • EXE format export, playable with any third-party players
  • AVI format export in multiple screens mode
  • DVD format export for Hybrid Card format files
  • Option for recycling the input-triggered events (Never recycle function)
  • Backup, save AVI and BMP functions accessible in LAN ViewLog
  • Automatic refresh of the video event list in LAN ViewLog
Notification
  • E-mail notification with attached video images on motion and alarm activation
  • E-mail or telephone notification on video lost or I/O error
  • Directs PTZ dome to a preset location on motion and alarm activation
  • SMS alerts available in Main System, Center V2 and Vital Sign Monitor
  • Alarms on objects that pass between predefined regions
WebCam - Remote Surveillance
  • POS Live View via IE Browser
  • 3G Mobile Phone Support (3GPP)
  • SSL Encrypt Connection Support
  • UPnP™ Support
  • Control Panel on Single View to Provide Instant Information and Operation
  • Support PIP, PAP, Defogging Live Videos, and Video Stabilizer in Single View
  • Restricting Power User and User to Access WebCam Server at Specified Time Length
  • Event List Query
  • Download Center
  • Drag-and-Drop Support for Camera, PTZ and I/O Icons on the 2 Windows of MPEG4 Encoder Viewer
  • Remote E-Map
  • Pop-up Live Images upon Input Trigger in Remote E-Map
  • Multicast
  • Audio Broadcast
Advanced I/O Control
  • Visual Automation
  • Virtual I/O Control
  • One-Click I/O Status Control
  • Multiple I/O Types Selection
  • Latch Trigger Feature
Mobile Phone Application
  • Support 4, 9, and 16 screen divisions
  • PTZ control via directional buttons
  • Channel switch via middle button
  • Support for Nokia S60 3rd Edition
Profile Management
  • Selectable GUI Skin
  • Custom Start-Up Splash Screen, Non-Active Video & Video Lost Screen
  • Customizing System Features
  • Easy Configuration Backup & Restore
  • Custom DVR Setting's Template
Remote Monitoring Software
  • WebCam
  • Remote Playback System
  • G-View for WinCE PDA
  • I-Mode
  • BlackBerry phones
IT Technology
  • RSA Network Security
  • Authentication Server: central control of password settings in local GV-DVRs
Central Monitoring Station (CMS)
Integration Solution
(*) Note: Not supported by GV-NVR

VERSION 8.3 GV-Hybrid DVR Specifications
DVR (Supports 2 cards up to 32 channels)
Model GV-600 GV-650 GV-800 GV-1120A GV-1240A GV-1480A GV-2008
Video Input
4,6,8,10,
12,14,16
4,8,
12,16
4,8,
12,16
8,12,16
8,16
16
8
Audio Input
1
2
4
8,12,16
8,16
16
8
TV Output
No
No
No
1
1
1
1
Recording
Rate		 CIF NTSC
30 fps
60 fps
120 fps
120 fps
240 fps
480 fps
-
PAL 25 fps 50 fps 100 fps 100 fps 200 fps 400 fps -
D1 NTSC
15 fps
30 fps
60 fps
80 fps
120 fps
240 fps
240 fps
PAL 12.5 fps 25 fps 50 fps 72 fps 100 fps 200 fps 200 fps
Display
Rate		 CIF NTSC
30 fps
60 fps
120 fps
480 fps
480 fps
480 fps
-
PAL 25 fps 50 fps 100 fps 400 fps 400 fps 400 fps -
D1 NTSC
15 fps
30 fps
60 fps
480 fps
480 fps
480 fps
240 fps
PAL 12.5 fps 25 fps 50 fps 400 fps 400 fps 400 fps 200 fps
Input Type
BNC : BNC x 4
D-Type : DB15 x 2
DB15 x 2 (Video)
DB9 x 2 (Audio)
DB15
x 2
(Video & Audio)
Dimension (W X H)
144x89 (mm) / 5.67x3.5 (in)
144x98 (mm) / 5.67x3.86 (in)
BNC: 152x94 (mm) / 5.98x3.7 (in)
D-Type:
174x98 (mm) / 6.85x3.86 (in)
187.7 x 117.1 (mm) /
7.38 x 4.61 (in)
240x102
(mm) /
9.45x4.02
(in)
Video Compression
Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2
HW MPEG4
Compression Rate
Variable, 300: 1 Maximum
Video Resolution
D1, Half D1, CIF Resolution
Video Signal Type
NTSC, PAL
PTZ Control Protocol Support
  • Ademco (Juptier)
  • Bosch (TC 700 / TC 8560)
  • Canon (VC-C3 / VC-C4)
  • CBC GANZ (ZC-S120 Series)
  • Chiper (V9KRV)
  • D-Max
  • DiGi Dome (DOH-240)
  • Direct Perception (PTU-D46)
  • DynaColor (D-7720 / D-7722)
  • Elitar (EL-PT830)
  • Elbex (Matrix / 1000)
  • EverFocus (EPTZ 1000 / 500)
  • GKB (SPD-221)
  • Hi-Sharp (HS-CC600 / HS-CC610)
  • JEC (ETXK8000)
  • JVC (TK-S576B / S655 / TK-C686E)
  • Kalatel Cyber Dome with KTD-312
  • Kampro 230X CCD Zoom Camera (GE Security)
  • Kampro Technology (K-ZC23)
  • Kenko (DMP23-H1)
  • Lilin PIH-7000 (17X) / PIH-7600 (22X) / PIH-7625 / PIH-7600PL / PIH-7625 (25X) / PIH-820
  • LG (LPT-OS553HQ)
  • Mintron (54G2AHN / P)
  • MZC (IR6018DN)
  • Minking Messoa (SDS600 Series / D-700 series)
  • NanWang (NVD 2300PNT) / V4.1 (NVD 2300PNT)
  • Panasonic (WV-CS850 / CS854)
  • Pelco (P / D / Spectra III / Spetra Mini Dome SD4-WO)
  • Pishion (22X / VCC5i)
  • PTZ in I/O
  • SAE (DR-E588)
  • Samsung (SPD-1600 / SPD-3300 / SCC-641 / SCC-643 / SPD-33000)
  • Sensormatic (Ultra IV)
  • Sony (EVI-D100 / D100T)
  • TOA (CC551)
  • VIDO (Dome / G65)
  • YAAN
  • YOKO (YK-2E00)
  • 360 Vision ViD-18COP04 (Pelco P)
  • COP 15-CD53W (Pelco D)
  • Elmo PTC-200C, Elmo PTC-400C, Elmo PTC-1000,
  • Eyeview T-Power (T2-SA27)
  • JVC TK-C686E
  • StorVision
    		•
    Networking
    TCP / IP, LAN, WAN, Internet, Modem Dial-up, Modem-to-Modem, ISDN
    Backup Device
    HDD, NAS, CD-R / R-W, DVD+R / +RW, DVD+R (DL), ZIP, JAZ, Blu-ray
    Language
    Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
    NVR
    Model GV-NVR (GV) GV-NVR
    Video Input 4, 8, 12, 16, 20, 24, 28, 32 1, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32
    Audio Input 4, 8, 12, 16, 20, 24, 28, 32 1, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32
    Video Compression MJPEG, MPEG4, H.264
    Video Resolution From CIF to 5 Mega pixel
    IP Camera
    GeoVision GV-IPCAM 1.3M, GV-Video Server, GV-Compact DVR
    Arecont Vision AV1300, AV2100, AV3100, AV3130,
    AV5100, AV5105, AV8360
    AXIS AXIS 206, AXIS 207, AXIS 207W,
    AXIS 207MW, AXIS 209FD,
    AXIS 209FDR, AXIS 209MFD,
    AXIS 209MFD-R, AXIS 210,
    AXIS 210A, AXIS 211, AXIS 211A,
    AXIS 211M, AXIS 211W,
    *AXIS 212 PTZ, *AXIS 213 PTZ,
    *AXIS 214 PTZ, AXIS 215,
    AXIS 216FD, AXIS 216FD-V,
    AXIS 216MFD, AXIS 216MFD-V,
    AXIS 221, AXIS 223M, AXIS 225FD,
    AXIS 231D, AXIS 232D,
    AXIS 233D, AXIS 241Q,
    AXIS 241S, AXIS P3301, AXIS Q7401
    Canon *VB-C300, *VB-C50i
    GeoVision GV-IPCAM 1.3M,
    GV-Video Server,
    GV-Compact DVR
    IQinvision IQeye301, IQeye302, *IQeye510,
    *IQeye511, IQeye701, IQeye702,
    IQeye703, IQeye705, IQeye752,
    IQeye753, IQeye755
    JVC VN-C20U, VN-C205U, VN-C215U,
    *VN-C625U, *VN-C655U, NV-25,
    VN-V26, *VN-V686
    Mobotix

    M12D_Sec_DNight, M12D_Web,
    M12D_IT_DNight, M12D_Sec,
    M12D_Sec_R8
    Panasonic BB-HCM110, *BB-HCM311,
    *    BB-HCM331, BB-HCM371,
    *BB-HCM381, *BB-HCM403,
    *BB-HCE481A, BL-C10, BL-C30,
    *    WV-NS202A, WV-NW484,
    *WV-NW964
    Pelco IP110, IP3701
    SONY SNC-CS10, SNC-CS11,
    SNC-CS20, SNC-CS50N,
    SNC-CS50P, SNC-CM120,
    SNC-DF40N, SNC-DF40P,
    SNC-DF50N, SNC-DF50P,
    SNC-DF70N, SNC-DF70P,
    SNC-DF80N, SNC-DF80P,
    SNC-DM110, SNC-DM160,
    SNC-DS10, SNC-DS60, SNC-P1,
    *    SNC-P5, *SNC-RX530N,
    *SNC-RX530P, *SNC-RX550N,
    *SNC-RX550P, *SNC-RX570N,
    *    SNC-RX570P, *SNC-RZ25N,
    *SNC-RZ25P, *SNC-RZ50N,
    *    SNC-RZ50P
    * IP Cam with PTZ control
    Common Specification
    Networking TCP / IP, LAN, WAN, Internet, Modem Dial-up, Modem-to-Modem, ISDN
    Backup Device HDD, NAS, CD-R / R-W, DVD+R / +RW, DVD+R (DL), ZIP, JAZ, Blu-ray
    Language Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
    Minimum System Requirements
      Up to 4 IP Channels

    Up to 8 IP
    Channels

    		 Up to 16 IP Channels Up to 32 IP Channels
    OS Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista
    (Not support 64-bit version of Windows)
    CPU Core 2 Duo, 2.4 GHz Core 2 Quad, 2.4 GHz
    RAM 2 X 1 GB Dual Channels
    HDD 1 2 4
    VGA ATI X 700 256 MB
    Important : For GV-System with 32 channels of megapixel IP video sources, the size of transmitted data may be quite large and reach beyond the processing speed limit of hard drive. For smooth processing, it is highly recommended to use 4 hard drives of Seagate SV35.3 Series (certified by GeoVision) or other brands. And assign the maximum of 8 IP camera recordings to a signle hard drive.


    Seja nosso parceiro!




    Tel/Fax: (11) 2996-7088  Email e MSN: comercial@pavio.com.br  Skype: paviocftv
